IT IS Odoo Connect
IT IS Odoo Connect
Makes your data exchange dream comes true

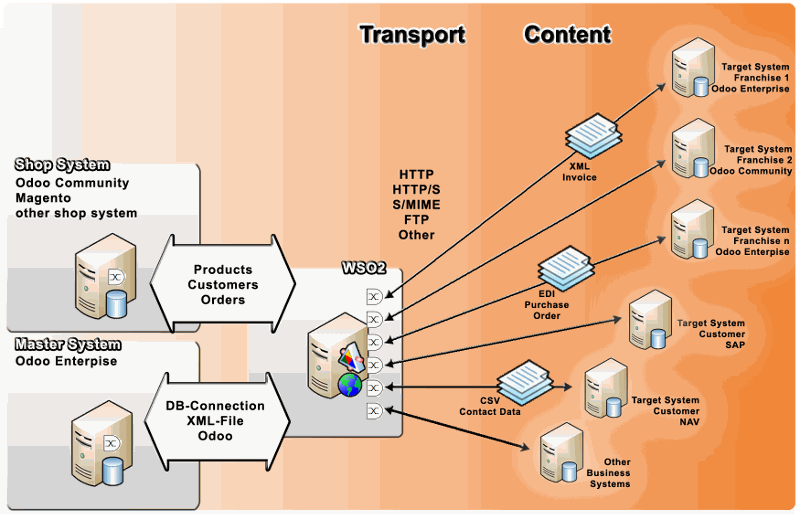

At the core of IT IS odoo connect sits a reliable, yet versatile and adaptable structure:
It starts with a master system where Odoo needs to be installed for the transmission. The powerful WSO 2 is the message broker for the data transfer. WSO 2 handles all the communication and transfers the message to the target systems. You can connect to webshops, franchise- and logistic systems or payment providers. Target systems can be based on odoo and other software.
Breakthrough functions and features
transfer records from one Odoo system to another Odoo system or different environments
transfer records with selected fields only. You don’tneed to transfer the whole data record
transfer based on domain filter - you can define the record-structure to transfer subsequence only
transfer sales orders with status “done”
different model sync (e.g. create purchase orders with selected fields in the target system based on sale orders)
send records to multiple systems at the same time based on configuration - you only need to configure once and can even do mapping
create records like products on master system and transfer to the target systems

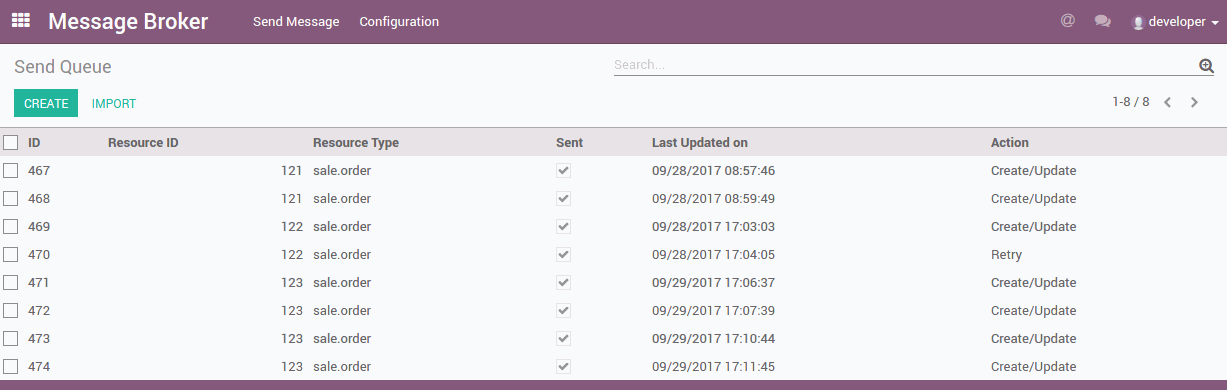

track your synchronization with a send queue and response queue mechanism, as well as implemented error handling
real time sync based on action and scheduler
sync on demand with the retry-mechanism you can sync in case of any issues manually
How does it work?
IT IS odoo connect creates a send queue with related records. Using a scheduler, the records are transferred to WSO2 . WSO2 message broker transfers or broadcasts data to the related target system. In odoo there are three schedulers implemented.
1. Create Queue: This scheduler identifies the record which was created or changed by a user. For the status of changing records we are using one field in every model which we need to sync. If this field name is true, it fetches all related records. The scheduler will create an entry in the send queue table and marks the field as false once the record is synced.

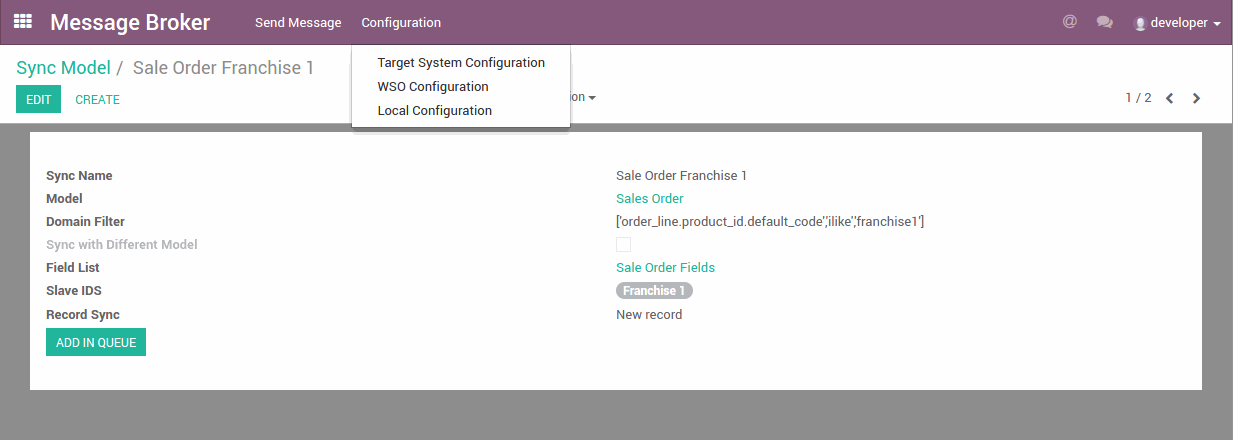

2. Send WSO message: This scheduler creates the JSON data based on the sync model configuration and includes the routing information, message type, record-id and other required information of record.
3. Resend scheduler: This scheduler sends a message again to WSO2 if the delivery of message has failed. In the configuration there can be set different time periods for retrys to resend the message automatically.All messages are setup with an acknowledge reply. This helps the sender to check for failed transmissions.
Introduction IT IS Connect and Configuration
In our video Part 1 of IT IS Odoo Connect, we introduce you to our product and explain the functionality. We also give you an overview about the basic configuration of the module. You can find more videos on our You-Tube Channel.
How the schuedulers are working
In video Part 2 of IT IS Connect, we explain the schedulers involved and how to adjust.
Example for the data transfer
In video Part 3 you can see a demonstration where we transfer data from one Odoo system to another.
